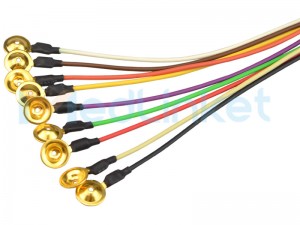

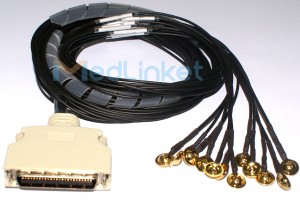

EEG Lead Wires with Electrodes
The EEG Lead wires are used to collect human physiological electroencephalogram signals in conjunction with EEG detector, EMG detector and polysomnography monitor. No matter it is of copper-plated silver / silver chloride electrode, lead wire or electrode wire interface, we strictly use raw materials of international quality, crafting which to meet customers’ different purposes.
Product Characteristics
◆ The electrodes is of pure copper plated with gold, with good electrode conductivity, high precision, low noise, clear and stable EEG signal collection;
◆ Electrode lead wire adopts multiple silver-plated copper foil wires, with strong tensile strength, plus imported medical grade TPU outer cover, smooth and non-knotted, saving testing time;

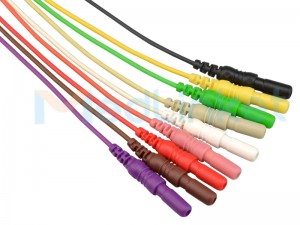

◆ Connectors: standard 1.5mm hole connectors (2.0mm pin connectors), compatible with domestic and foreign EEG equipment. After testing, the number of insertion and removal can be up to 100,000 times.
◆ Encapsulation method between electrode and lead wire: adopting special optimized encapsulation technology, with low noise, stable performance and durable electrode.
【EEG Lead Wires with Electrodes】
|
Med-link Ref No. |
Description,Name,Connector, Color,Length |
Price Code |
|
B143-T-BLA-60 |
Tooth type grabber EEG cord, 143>T, Black, L=60″ , (1.5 m) |
A2 |
|
B143-T-RED-60 |
Tooth type grabber EEG cord, 143>T, RED,Green, L=60″, (1.5 m) |
A2 |
|
B143-P-BLA-60 |
Cup Electrode EEG cord, 143>P, Black, L=60″ , (1.5 m) |
A2 |
|
B143-P-RED-60 |
Cup Electrode EEG cord, 143>P, Red, L=60″, (1.5 m) |
A2 |
|
B143-P-GRN-60 |
Cup Electrode EEG cord, 143>P, Green, L=60″ , (1.5 m) |
A2 |
|
B143-P-10-48 |
EEG LEAD 10-WIRESET(48IN)，(72IN)，(96IN)，KRYPTONITE |
D6 |
|
B143-P-10-72 |
EEG LEAD 10-WIRESET(72IN)，KRYPTONITE |
E2 |
|
B143-P-10-96 |
EEG LEAD 10-WIRESET(96IN)，KRYPTONITE |
E8 |
|
B143-P-10-120 |
EEG LEAD 10-WIRESET(120IN)，KRYPTONITE |
F4 |
|
B143-DP-10-60 |
Disposable EEG electrodes,Copper wires, 10 lead-Wire Set , L=60”(1.5m) |
E2 |
|
B708-P-BLA-45 |
Compatible Biomedical Instruments ,12-Lead,Radiotransparent Leadwires |
K0 |
|
CT0086A |
EEG Electrode, Matal: Cu/AgCI ,10pcs/pk |
E0 |
| SL0760A | Disposable EEG Cup Electrodes, 9.2 mm diam, AgCl, 20pcs/pack; |
A2/pk |
*Declaration: All the registered trademarks, names, models, etc. displayed in the above content are owned by the original owner or original manufacturer. This article is only used to illustrate the compatibility of the Med-Linket products. There is no other intention! All the above information is for reference only, and should not be used as a guide for the work of medical institutions or related units. Otherwise, any consequences caused by this company have nothing to do with this company.
