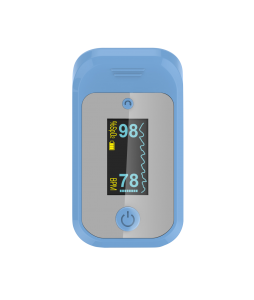

Pluse Oximeter Features
1. Compact size, easy to carry;
2. Rotate OLED Screen, Energy-saving: Convenient to read at different angles;
3. Continuous Monitoring SpO₂ and Body Temperature;
4. Anti-shake Function: imported chips , which can be measured under static and dynamic conditions;
5. Intelligent alarm, set the upper and lower limits of blood oxygen saturation/pulse rate/body temperature;
6. CE Approved, Medical Grade;
7. Separate external blood oxygen probe (optional), temperature probe, suitable for different people such as adult/child/infant/newborn;
8.Intelligent Bluetooth, one health transmission：Data Bluetooth transmission, docking Meixin Nurse APP, real-time record sharing and viewing more monitoring data.(Only applicable to Bluetooth oximeter)
Product features
1. Point-to-point or continuous non-invasive monitoring of blood oxygen (SpO₂), pulse rate (PR), perfusion index (PI), perfusion variability index (PV);
2. According to different application environments, desktop or handheld can be selected;
3. Bluetooth smart transmission, APP remote monitoring, easy system integration;
4. Easy-to-use interface for quick setup and alarm management;
5. The sensitivity can be selected in three modes: medium, high and low, which can flexibly support various clinical applications;
6. 5.0″ color high-resolution large screen display, easy to read data at long distance and at night;
7. Rotating screen, can automatically switch to horizontal or vertical view to view multi-function parameters;
8. It can be monitored for up to 4 hours for a long time, and the interface can be quickly charged.
Display Parameters:
- SpO2
- Temperature
- Heart Rate
- PR
- Perfusion Index
- Plethysmograph
- PP
- ,PPG
Measuring Accuracy:
- SpO2: 90%-99%, ±2%; 70% to 89%, ±3%
- Pulse rate: ±3bpm
- Temperature: 25℃ to 45℃(77°F to 113°F):±0.1℃
Product accessories:
Accessories include: packing box, instruction manual, charging data cable and standard sensor (S0445B-L).
Optional repeatable finger clip type, finger sleeve type, frontal meter type, ear clip type, wrap type, multi-function blood oxygen probe, disposable foam, sponge blood oxygen probe, suitable for adults, children, infants, newborns Son.
Ordering Codes: S0026B-S, S0026C-S, S0026D-S, S0026E-S, S0026F-S, S0026I-S, S0026G-S, S0026P-S, S0026J-S, S0026K-S, S0026L-L, S0026M-L , S0026N-L, S0512XO-L, S0445I-S
Ordering Information
| Product Name | Temperature Pulse Oximeter | Order Code | AM-801 |
| Display Screen | OLED Screen | Display Direction Switch | Display 4 Directions Switch |
| External Sensor | Available For Temperature & SpO2 Sensors | Automatic Alarm | Available For Setting Upper & Lower Limit, Automatic Alarm When Beyond Limit |
| Weight/Size | 31.5g/L*W*H: 61*34*30.5 (mm) | Measuring Display Unit | SpO2: 1%, Pulse Rate: 1bpm,Temperature: 1 ℃ |
|
Measuring Range |
SpO2: 35~99%
Pulse Rate: 30~245bpm Temperature: 25 ℃-45 ℃ |
Measuring Accuracy |
SpO2: 90%~99%, ±2%;
Pulse Rate: ±3bpm Temperature: ±0.1 ℃ |
| Power | DC 3.0V (2 Pieces AAA Batteries) | LED WaveLength | Red Light: About 660nm;
Infrared Light: About 905nm |
| Accessories | 1.W0024C (Temperature Orobe) 2.S0162D-S ( SpO₂ Probe) 3.S0177AM-L (Data Ddapter) 4.AM-001 Adpter |
||
